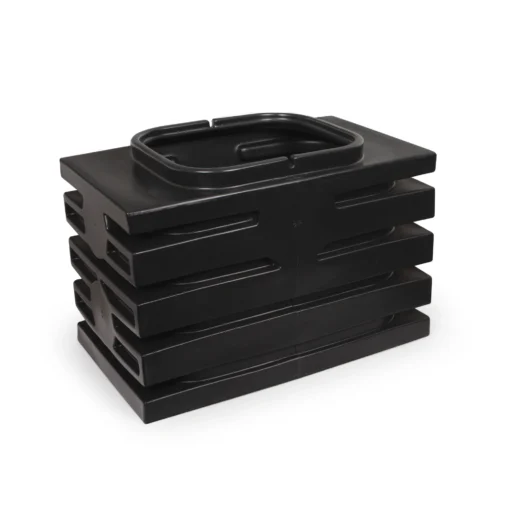

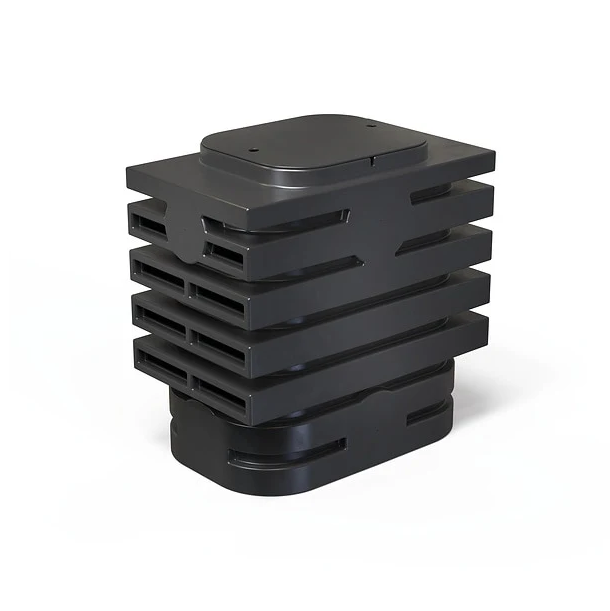

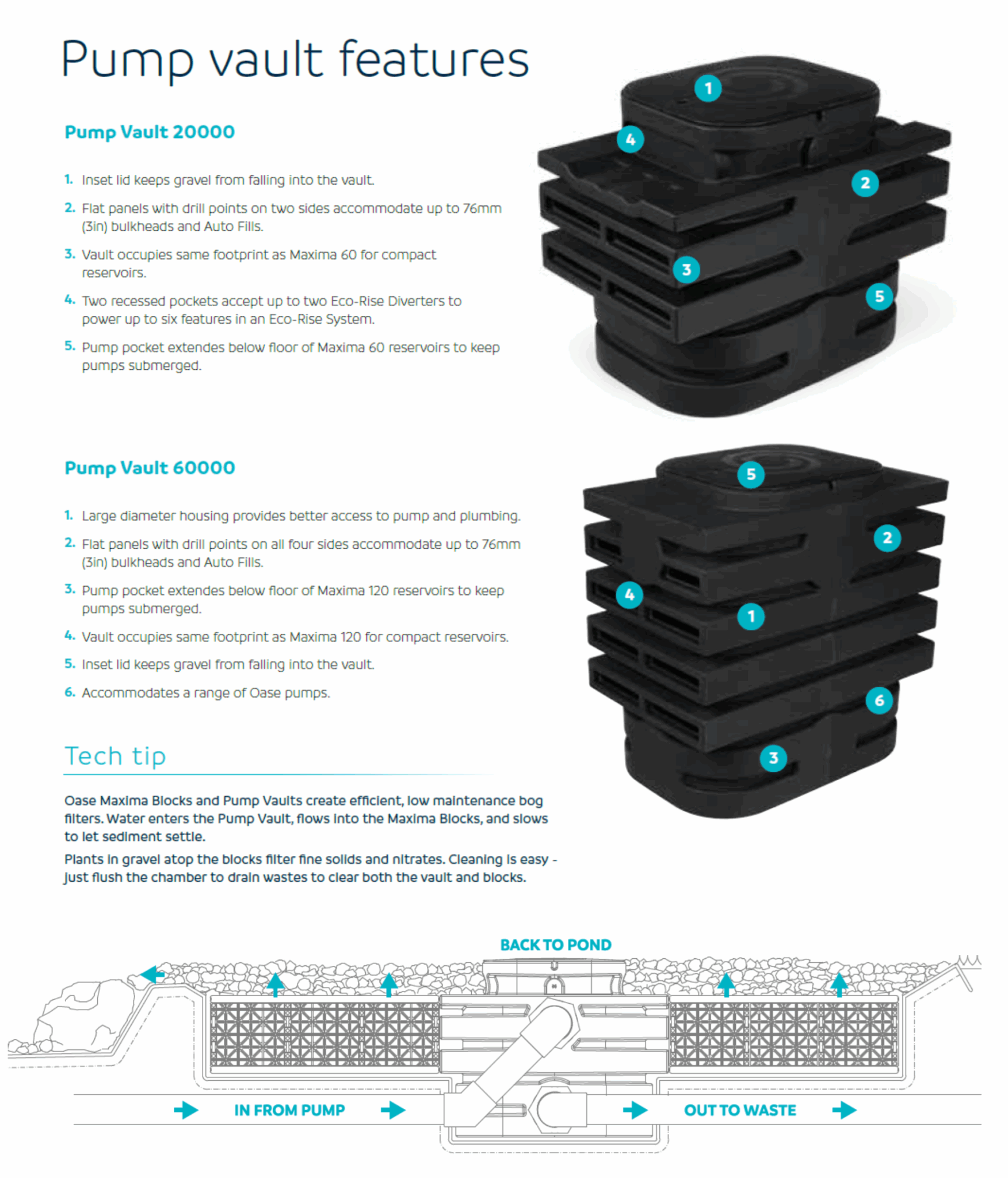

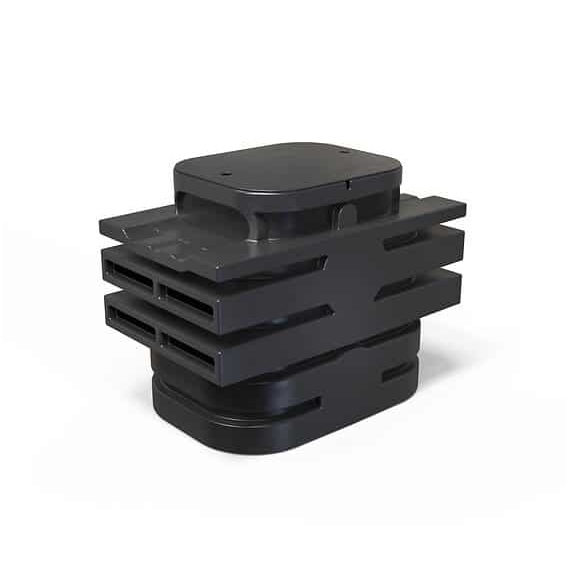

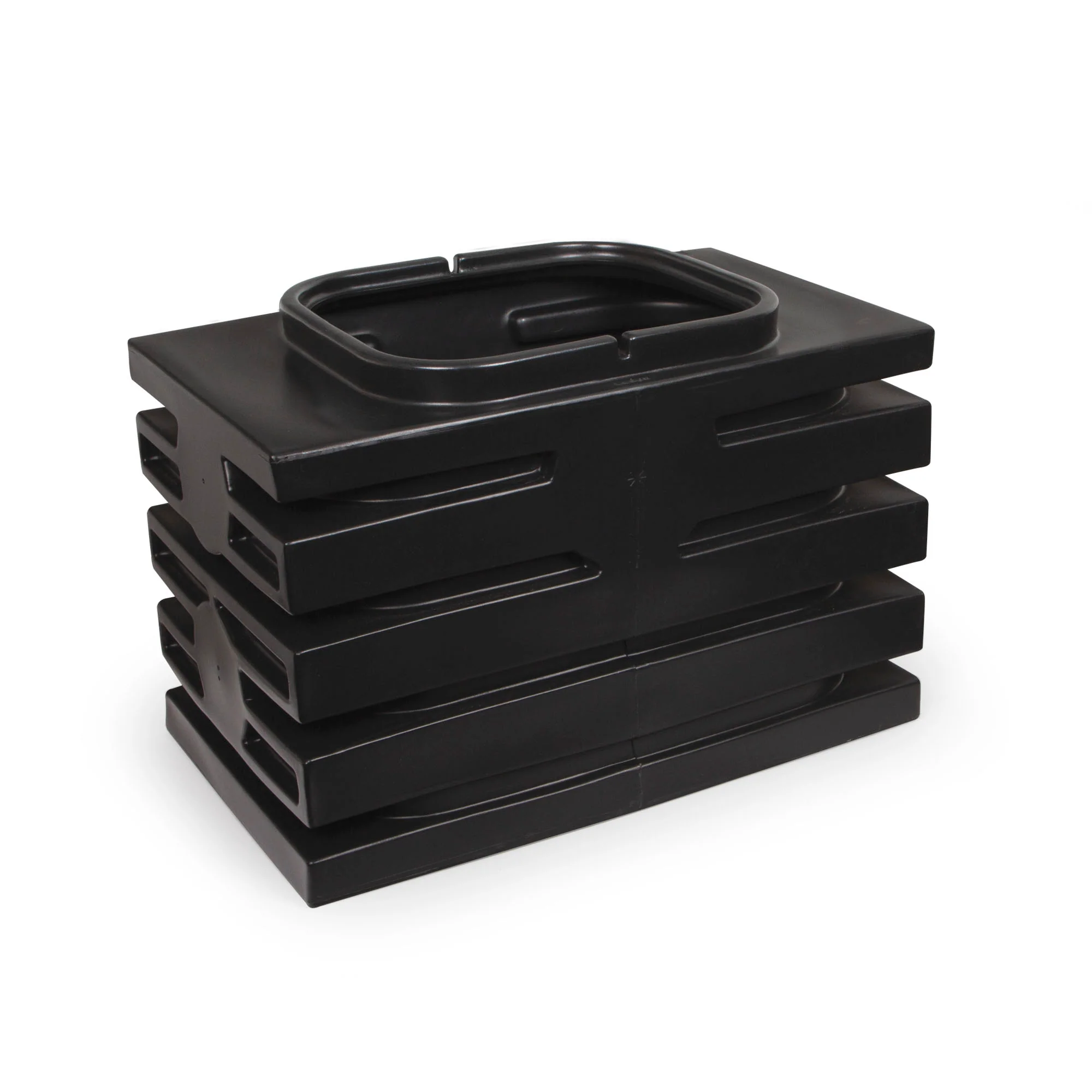

Oase Pump Vaults house and protect the pumps and plumbing of underground water storage and circulation systems. Heavy-duty, one piece pump vaults offer all the strength and versatility you need, allow for large flow rates and will not bow, bend or break, even under the most extreme conditions.

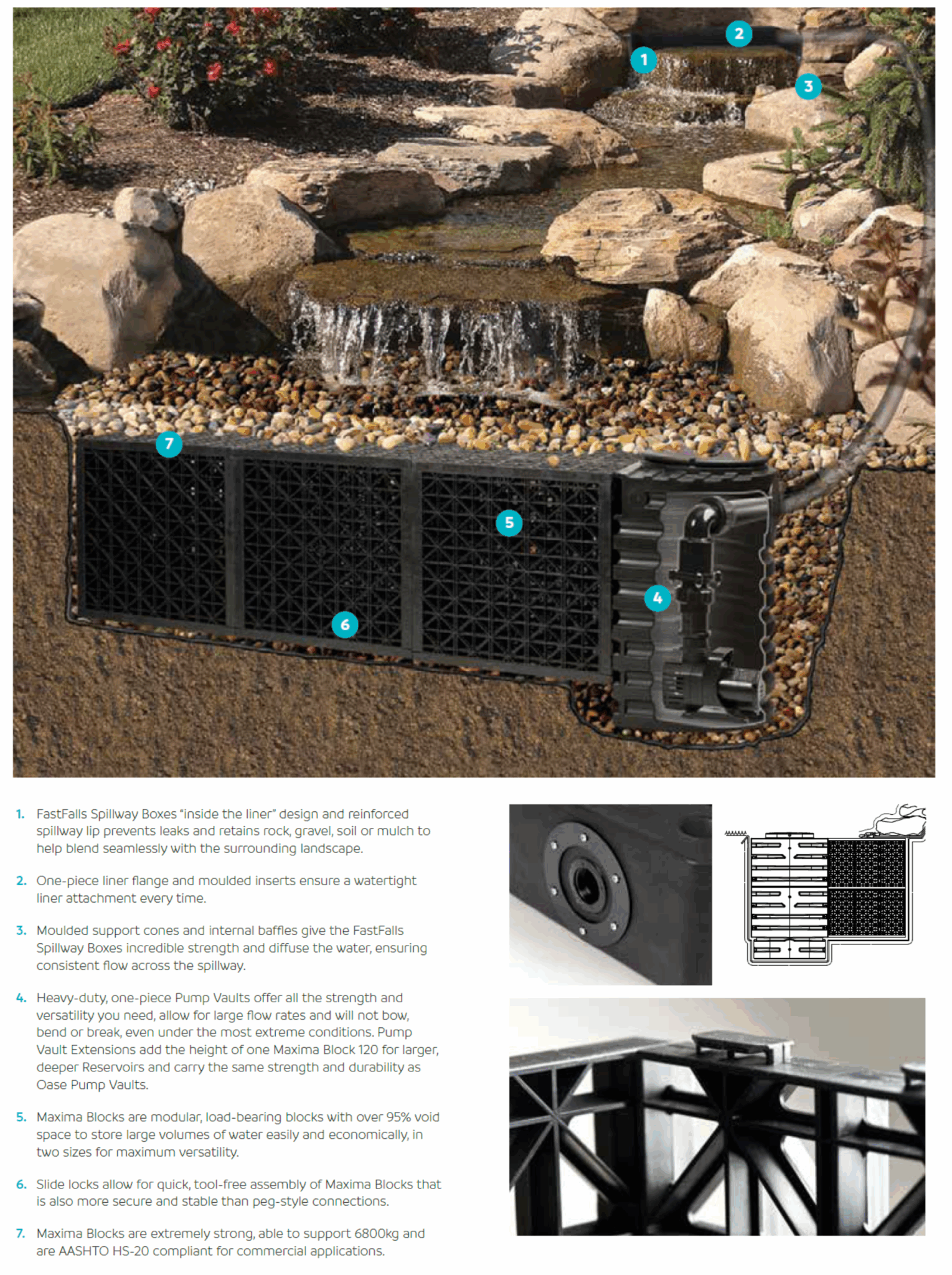

- Oase Pump Vaults occupy the same footprint as Maxima Blocks for simplified installation within a rectangular basin.
- Vaults are rotomoulded of virtually indestructible polyethylene for long, worry-free service.
- Extremely strong low profile vault lids fit all sizes, support gravel and foot traffic and can be removed without gravel falling in.
- Flat panels accommodate up to 76mm plumbing and auto fills.
- Either slotted side of Vault handles double the rated flow so one side can be blocked by liner without effecting capacity.
- Pump Vault Extensions increases the height of the vault in deeper, larger reservoirs, with each extension the height of one Maxima 120.
- All Vaults accommodate two or more pumps for versatility.
| Product | Pump Vault 20000 | Pump Vault 60000 | Pump Vault Extension |
|---|---|---|---|
| Dimensions (L x W x H) | 685 x 406 x 527 | 685 x 406 x 685 | 685 x 406 x 467 |
| Max. Flow Rate | 14,750 L | 56,750 L | - |
| Discharge | 40mm or 50mm | 50mm or 76mm | 50mm or 76mm |
| Maxima Match | Maxima 60 | Maxima 120 | Maxima 120 |
